Bilstein 0-70mm or 2.75 Inch Front & 0-50mm or 2 Inch Rear Lift Kit to suit Ford F-150 13th Gen 2015-2020

Elevate your driving experience with the Bilstein 6112 & 5160 Shock Absorbers, the ultimate solution for lifting and enhancing your RAM, Silverado, or F150. Designed for the discerning American truck owner, these shocks combine performance, durability, and comfort in one exceptional package.

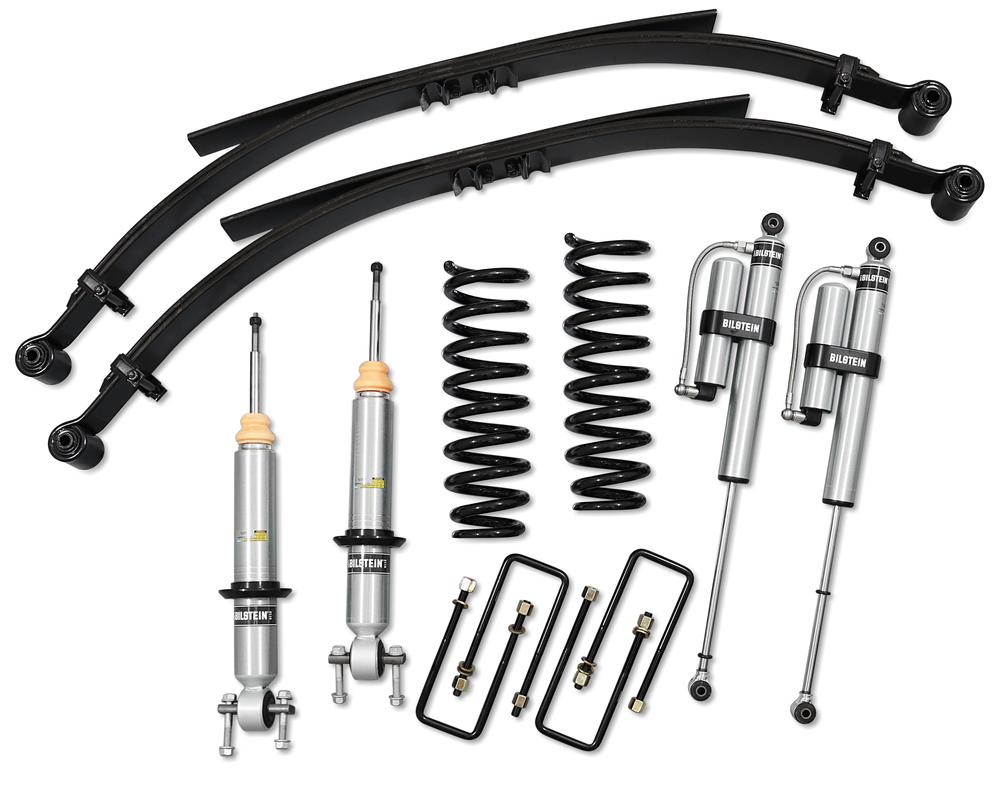

Lift Kit Contents:

The lift kit is as straightforward as it gets, comprising front struts and rear shocks & front & rear springs, meticulously designed for easy installation and optimal performance.

Enhanced Stability and Control:

Expertly valved to boost ride stability, these shocks eliminate the 'boaty' feel common in lifted vehicles. The result is a more controlled, stable driving experience across all terrains and driving styles, offering you the best in performance and comfort.

Easy Purchase and Installation:

Getting these top-tier shocks is as easy as visiting our website and selecting the set that fits your vehicle. For a hassle-free experience, opt for our 'Click and Fit' service at checkout. We'll handle the installation and ensure your vehicle is perfectly leveled and ready to conquer any road.

Elevate your ride with the Bilstein 6112 & 5160 Shocks – where performance, comfort, and durability meet.
After you have purchased this lift kit, someone from our team of suspension experts will call you to confirm your order details, your requirements, and your vehicle specifications. All to ensure that we give you the right product. If you purchase this lift kit using our click & fit service, we will confirm your installation date at the same time.

High Level Product Details

•BILSTEIN gas-pressure technology provides maximum traction, precise handling and safety
•Patented digressive valving instantly reacts to changing surface conditions
•Optimum grip and enhanced lane stability in day to day and extreme situations
•Proven in harsh Australian outback conditions
•Repairable & Revalveable
•OEM certified mounting hardware allows for easy installation
•Restores original ride characteristic
•Individually fine-tuned during BILSTEIN road testing
•Enhanced safety
•Precision handling for optimized vehicle control
•Constant damping power under any load
•3 year / 60,000km warranty. Learn more here.

Bilstein B8 6112 Features & Benefits

•Large 60mm body for increased oil capacity, cooling, and long-term durability
•60mm digressive piston improves ride comfort and control over rough terrain
•Monotube design ensures consistent, fade-free performance in all conditions
•Adjustable spring seat offers 0-2.75in of lift, depending on the application
•Custom engineered cold wound linear springs for enhanced vehicle control and ride comfort
•Kit includes 2 x 60mm shock absorbers, 2 x billet hard anodized spring seats and 2 x springs
•Available for late model trucks and SUVs which utilize a front coilover suspension
•Vehicle specific tuning
•Made in the USA

Ride Height Adjustable

Multiple snap-ring grooves in the body allow for different spring seat positions, providing an adjustable ride height range of 0-2.75 inches (depending on application).

Direct Fit

Bolt on and head out. Whether you’re headed to work or hitting the trails, our B8 6112 shocks are always a direct-fit installation with hardware included. Less time in the garage, and more time to enjoy your ride.

Large 60mm Design for the Rugged Road Ahead

You choose the destination, we’ll get you there. You can be confident knowing that BILSTEIN’s large 60mm body and patented digressive valving allow shock absorbers to instantly react to changing surface conditions, giving you a stable, controlled, and comfortable ride on rugged and washed out roads.

Large 60mm Design for the Rugged Road Ahead

•Bilstein B8 5160 Features & Benefits
•Remote Reservoir increases shock oil capacity for greater heat dissipation
•Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control
•Designed to easily install in vehicle‘s stock mounting locations
•Unique swivel banjo fitting allows 360° rotation
•Made in the USA
•Increases wheel travel on most applications

Travel more with more travel.

BILSTEIN’s nitrogen-infused 46mm monotube design with a floating dividing piston separating the gas and oil, provide consistent, fade-free performance. Remote reservoir offers increased travel and cooling. Durability you can trust on the road ahead.

You’re in control.

All roads are not created equal. But you can be confident knowing that BILSTEIN’s patented digressive valving allow shock absorbers to instantly react to changing surface conditions, giving you a stable, controlled, and comfortable ride.

Tuned for you.

One size does not fit all. BILSTEIN’s 5160 shocks are valved and tuned for the specific year, make and model of your vehicle, and consider many other use factors – loaded or unloaded, towing, tire pressure, etc. With all of these characteristics in mind, BILSTEIN can provide you with the perfect ride, and keep you out on the trail thanks to its remote reservoir.

Where applicable the spring rates of this lift kit can be adjusted to handle different front and rear loads. If you would like to change the specified spring rates of this lift kit, please give us a call, send us a message or leave a comment when you purchase this 4x4 lift kit.

Bilstein Lift Kit Warranty

Bilstein lift kits come with a 3 year / 60,000 Kilometer warranty. Just activate your warranty online. Learn more here.

Premium Lift Kit Packaging & Shipping

When purchased, this lift kit will be delivered via Fulcrum’s ‘Premium Packaging’ service. This is an all-inclusive service, designed to ensure extremely fast delivery of your order. Your suspension components will be packaged securely to guarantee they are protected during transit. We provide our Premium Packaging service for all our shipping methods. Including Deliver to Door (Home Delivery), Click & Fit and Free Pickup (Click & Collect). You can find out more about our premium lift kit packaging by visiting this page. If you have any questions, you can call us on 1800 385 278.

Lift Kit Fitting Instructions

All lift kits are shipped with a set of lift kit fitting instructions and also include details on upgrading your warranty. The instructions provided are general in nature. It is highly recommended that you get your lift kit installed by a mechanic or suspension technician, preferably with wheel alignment facilities.

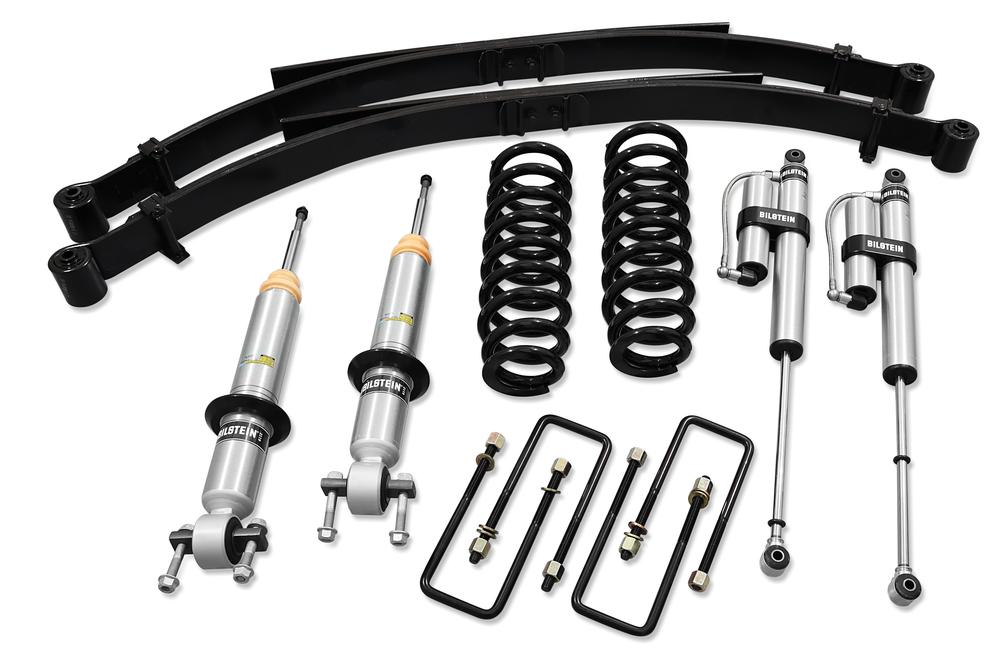

6112 & 5160 Bilstein Shock Absorbers, 2.75 inch body front shocks with Bilstein springs, rear shock is 2.0 inch body with remote reservoir.

This Lift Kit and its Height Variations

Suppliers are often not open about this topic from the initial purchase. However, at Fulcrum Suspensions we believe in honesty and providing customers with all the information relevant to their purchase. The below is not exclusive to Fulcrum Suspensions, every brand of lift kit and every company that sells lift kits understands the below and works through it.

In the title of this lift kit a specific height increase is referenced. Although this is accurate, due to the complicated nature of suspension and numerous varying factors between each vehicle, such as accessories, factory ride height, sag due to age, use and pre-existing conditions. There will always be a tolerance for the final lift height increase that your 4WD receives both front and rear may vary to the one listed in the products title.

If we are provided with all the correct constant load details and we supply the correct springs. Your 4WD will get the correct lift height, within tolerance of as advertised. However due to external factors the tolerance my vary as much as + or – 15mm.

External factors that affect lift heights
•On top of our engineering, we have installed this lift kit on thousands of 4WD’s across Australia and each with various setups. This has given us the data to determine the average lift height increases. The height increase referenced in the title of this lift kit is based on that average number.

•If the vehicle has sagged already due overloaded springs caused by age, use and accessory installation. Then lift height change will likely be greater than the one listed in the products title. However, even with pre-existing sag the lift will take the vehicle back to OE ride heights + the increased lift mentioned.

•Every vehicle that comes off the factory floor has a tolerance variation in factory ride heights. Therefore, the final before and after measurements, both front and rear will always be different from vehicle to vehicle. Which means that even though this lift kit specifies a specific lift height in the title, due to the varying standard ride heights of each vehicle the lift you may receive will vary.

•If you do not provide our team with the correct info then we will not be able to supply you with the corrects springs, which will affect the lift height increase. Be sure that when our team reaches out to confirm all details you give them all info required.

Springs & Lift Heights

Regarding the below, when you are order a lift kit from Fulcrum Suspensions. Our suspension experts will call you to confirm all details and requirements before processing your order. We do this to make sure you get the best service and the best lift kit for your 4WD. Don’t stress about the finer details as we will take care of it. However, we note the below so you can understand the complexity.

As springs are what lift your 4WD, to ensure you get the correct height increase (lift) it is paramount that we supply the correct springs for your 4WD’s constant loads and intended use.

Although all lift kits specify a specific lift height in the title. As your 4WD has front and rear springs this means you will have a front lift height and a rear lift height. The spring rates we supply in this lift kit are determined by the weights you carry, a suspension height increase.

Keep in mind that both the front & rear springs work in conjunction with one another. If spring rate for either the front or rear is wrong, this could cause an uneven lift. Making the vehicle nose down or nose up which is not the outcome we want. So after purchasing when talking to our suspension experts, be certain to provide our team with as much info as possible in regards to the vehicles use and also constant loads.

To get the correct springs for your car, you must match your vehicles constant load/weight to the correct spring rates. For example, if you carry 250kgs you should get a spring that best matches that load.

We recommend you get all your constant load accessories sorted before you get a lift kit installed, this will ensure you have a level lift and the best ride from the get-go and wont require future spring changes. A ‘constant load’ is the accessories/gear that will be installed or in the vehicle 24/7.

You do not want to get a spring that is rated less than the load you carry at constant. If you do this, you will overload your spring and it will sag/fail. You can overload a spring by carrying too heavy of a load (front/rear) or by towing a boat caravan that adds extra weight to the tow ball. For example, if you have a 300kg rated rear spring but load your rear to 500kg, then your rear spring would fail and sag. The same applies to the front, with various engines and accessories having different weights such as alloy bull bar, steel bull bar, bumper bars, steel winch, synthetic winch, bash plates, tow hook, batteries, diesel engine, petrol engines, etc.

The flipside to the above, is that you do not want to get a spring that is rated too high for what you carry at constant. For example, you do not want to get a spring that is rated to 300kg if you only carry 100kg constantly. If you do this you will have a very stiff ride and it could lead to suspension failure such as shock top outs, coil spring trap issues and more.

If you are carrying any dynamic load, including extra load on the weekends, or tow anything. Then you will need an airbag kit to help. Airbag kits are designed specially not to carry weight but to help support your springs to handle any extra weight you may carry occasionally, like a boat, caravan, camper, trailer, or general load increase.

Again, please don’t stress too much about the above. As, after you order this lift kit, our suspension experts will call you to make sure you get the right kit, by confirming all your vehicle details and requirements.
