Type: Hilux
Model: N80 Revo - KUN/GGN/GUN 125, KUN/GUN 126, GUN13
Year: 2015 onwards
Suspension Type: Coil Spring Front / Leaf Spring Rear
Front Lift: 75mm
Rear Lift: 45-50mm
Detail: 4x4
75mm Lift (3”)
Rear Springs only 45-50mm to Provide a More Level Look
3-Way Damping Adjustment Remote Reservoir (MRA)

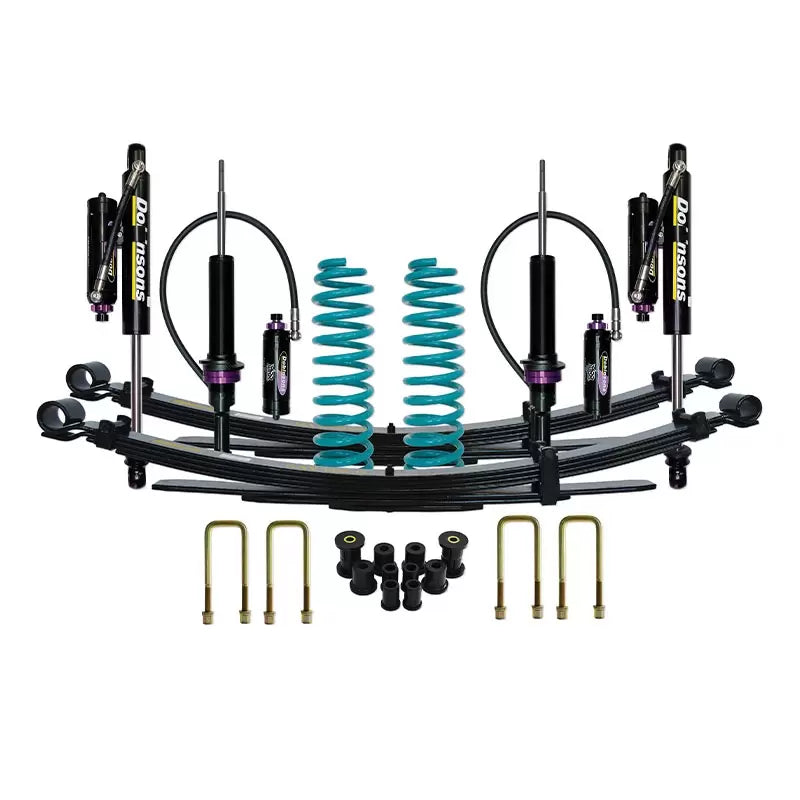

The kit contains:
•2x Dobinsons Front Coil Springs
•2x MRA59-A574 - Monotube Remote Reservoir (3-Way Adjustable) Front Shock absorbers Adjustable Spring Seat Height X = 233mm / 8.9"
•2x MRA59-A229 - Monotube Remote Reservoir (3-Way Adjustable) Rear Shock absorbers
•1x PB59-1094K - Polyurethane Bush Kit
•4x UB59-437 - U Bolts
•2x Dobinsons Rear Leaf Springs

Recommended Upgrades:
•Coil and Strut Assembly with new strut tops SC59-001 - Strut tops
•2x SK59-064 - Greasable Shackles & 2x SP59-060 - Greasable Shackle Pins
•1x UCA59-003K - Upper Control Arm - (Pair) Chrome-Moly Tubular 3º Castor Built In Rubber Bushes with Ball Joint
•1x UCA59-203K - Upper Control Arm Forged Aluminium - (Pair) Adjustable Camber & Castor Rubber Bushes With Ball Joint
•1x DD59-538K - Full Diff Drop Kit
•1x CV59-557K - High Clearance Inner C.V. Boot Kit * Must Be Fitted For Lifts Over 50mm To Reduce C.V. Boot Wear.
•1x CV59-554K - High Clearance Outer C.V. Boot Kit
* Must Be Fitted For Lifts Over 50mm To Reduce C.V. Boot Wear.

Optional Upgrades:
•1x BA59-006 - Headlight Adjuster * Recommended For Auto Headlight Models
•1x DD59-527K - Diff Drop Kit
•1x WA59-553K - Tailshaft Center Bearing Spacer Kit - Helps To Reduce Driveline Vibration In Lifted Vehicles. Should Be Fitted To All Lifted Vehicles.
•1x SE59-536K - Swaybar Relocation Kit
•1x RM59-004 - Shock Absorber Bracket - Remote Reservoir Positioning And Fitment
•1x RR4718 - Airbag Man - Air Suspension Helper Kit for Leaf Springs
