DESCRIPTION:

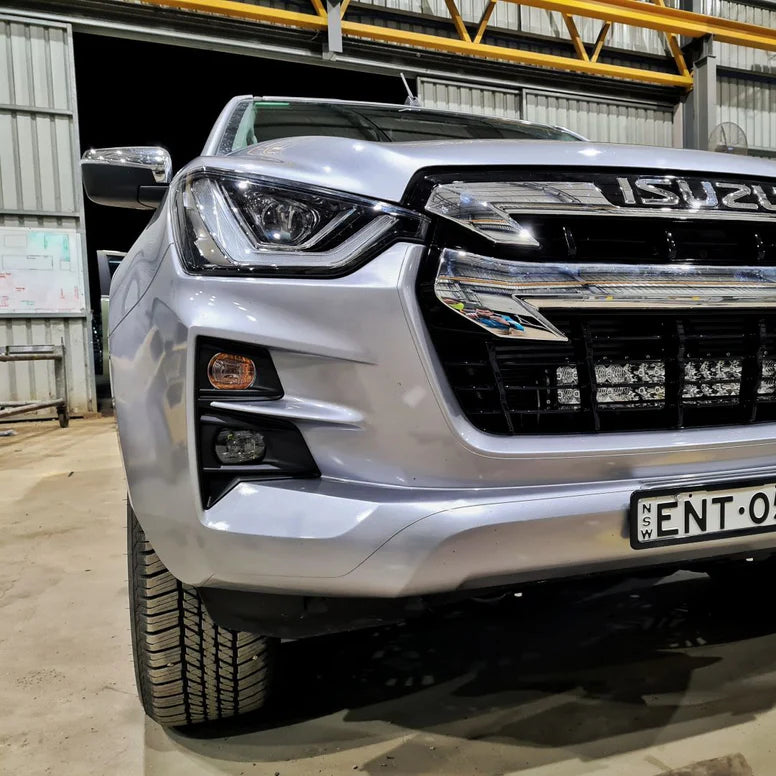

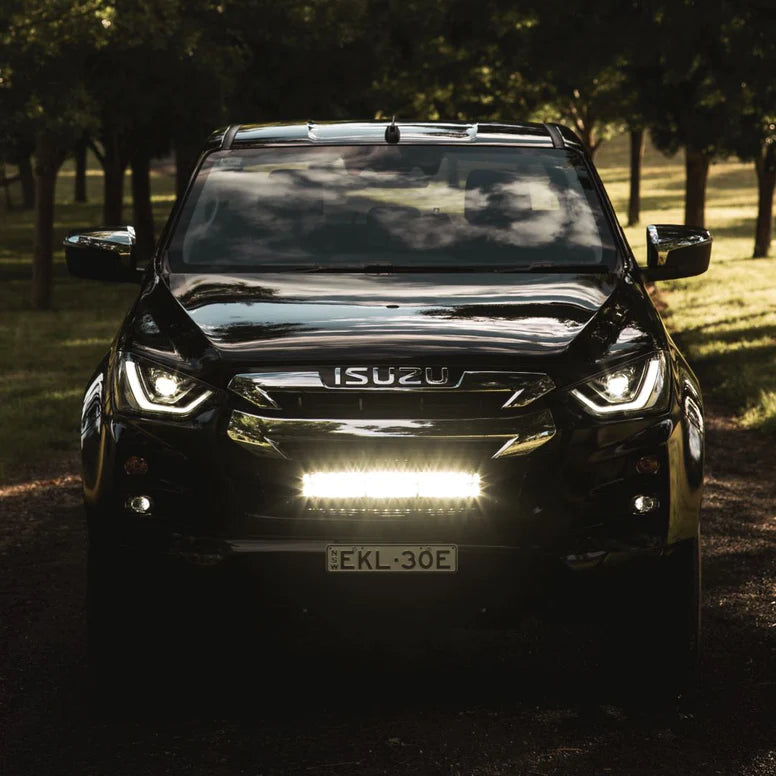

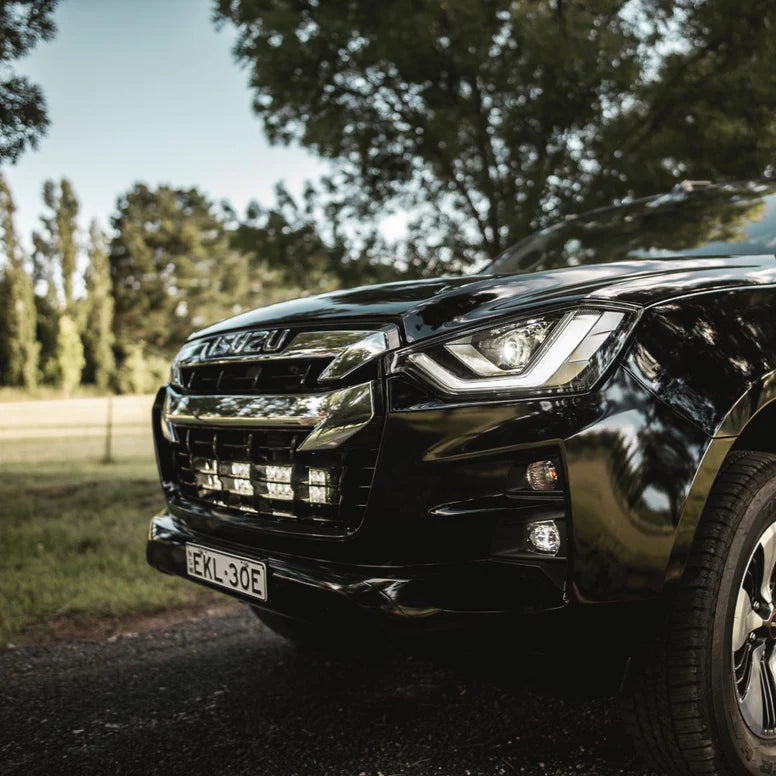

The brightest grille-mount light bar on the market! Conceal an absolute weapon of a light bar behind the grille of your D-Max and light up the road without having to invest in a bull bar. Suits all Isuzu D-Max models, 2020+.
The bracket system is cleverly engineered so that it mounts to existing points on the body.
This means that there is no cutting or drilling required. The only tools required for the job are screw drivers, a 12mm & 13mm socket, and a 13mm spanner.
The wiring is also a piece of cake. The kit includes a plug & play high beam adaptor, so no soldering or cutting is needed. It also has a complete wiring loom, so that there is no additional components required.

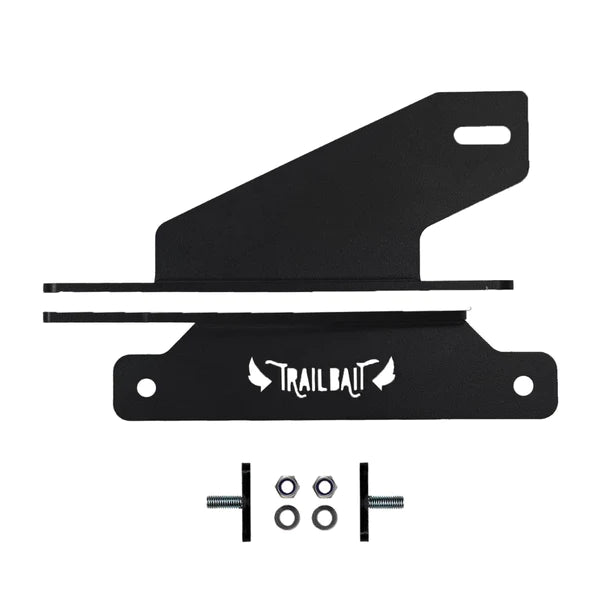

Bracket only includes:
•Purpose-built D-Max light bar bracket, powder coated black
•Mounting hardware

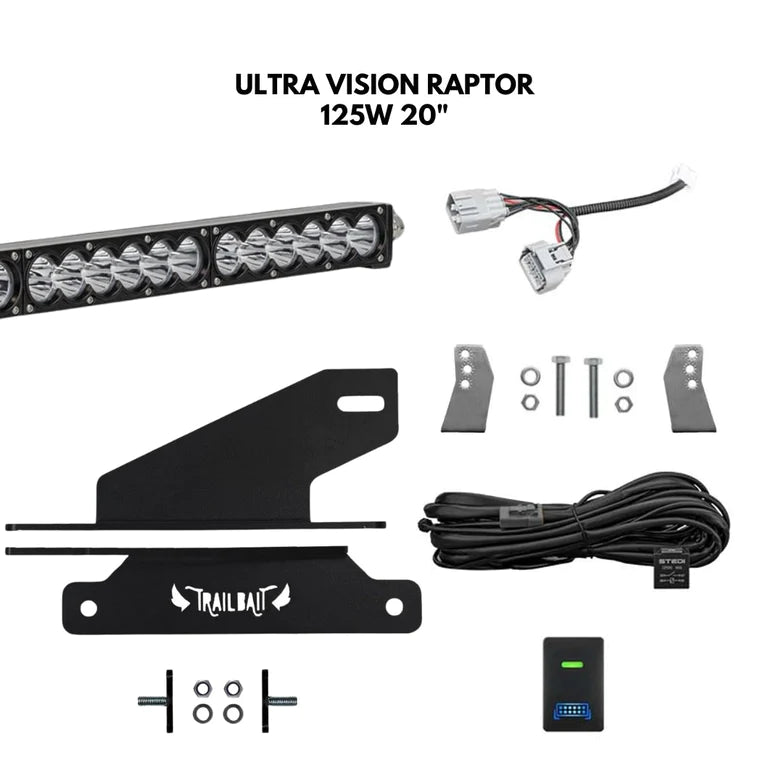

Light Bar kit includes:
•Purpose-built D-Max light bar bracket, powder coated black
•Isuzu D-Max Plug & Play wiring piggyback
•Complete wiring harness including inline fuse
•OEM-Style switch to fit into factory switch blank
•Mounting hardware - nuts, bolts and brackets
•Light bar
LIGHTBAR | SIZE | BEAM DISTANCE | BEAM WIDTH | EFFECTUVE LUMENS | WATTAGE | WATTAGE |
---|---|---|---|---|---|---|

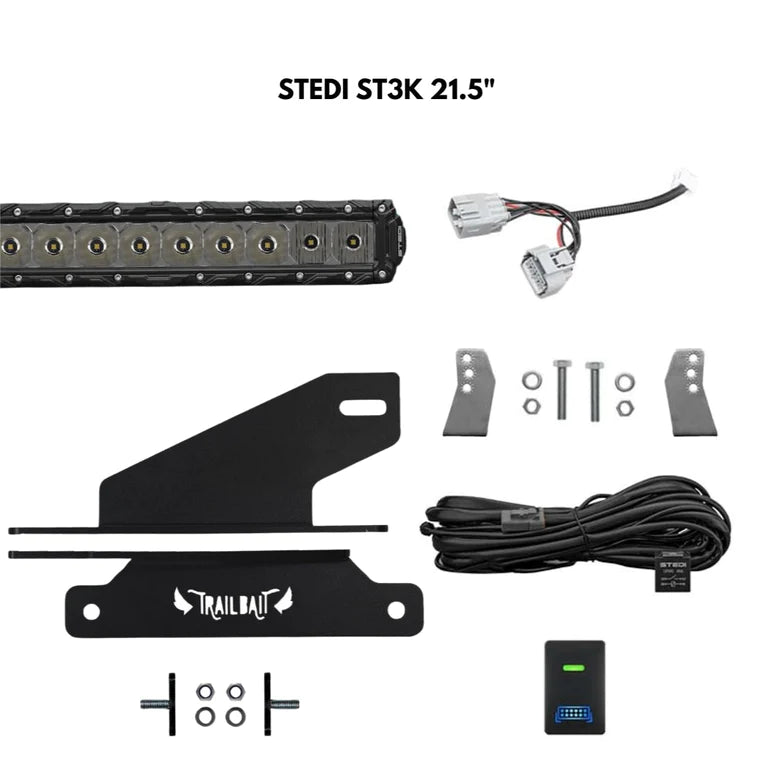

STEDI ST3K | 21.5" | 20P | 493m | 77m | 4,100 | 58W |

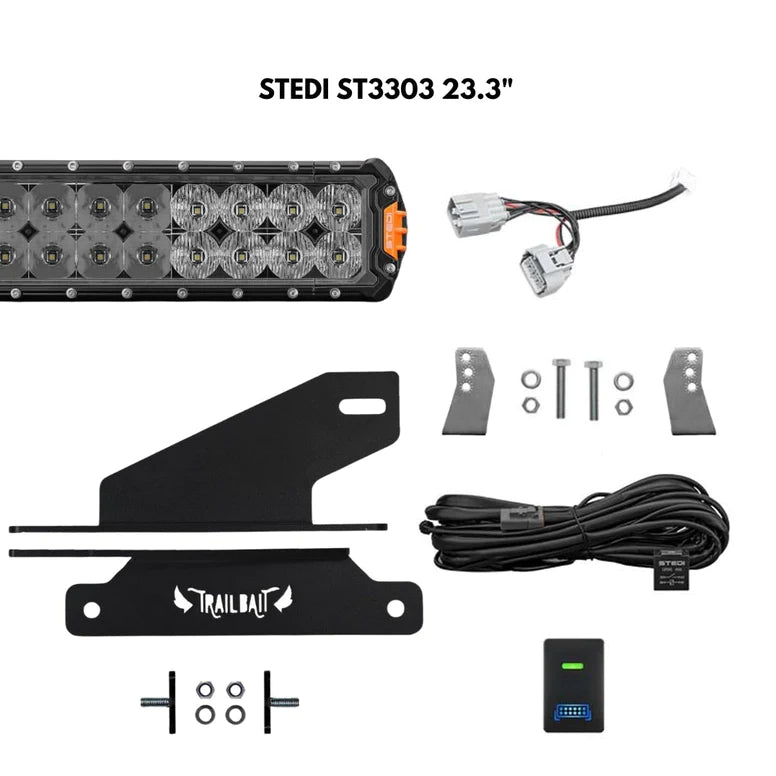

STEDI ST3303 | 23.3" | 20P | 689m | 116m | 17,920 | 223W |
UltraVision 125W | 20" | 666m | 666m | 60m | 11,430 | 125W |
Does this affect air flow? The TrailBait light bar bracket spaces the light at the front of the grille cavity, so there is enough space for air to flow around and behind it. This means that there will not be any 'hot spots' on the radiator or intercooler. Here is a real customer review: "I've got a 21.5 inch light behind my grille and using the torque pro app there was no difference in temps from before to now.. either at speed or stopped in traffic."
Getting a bull bar? If you want to get a kit while you wait for your bull bar to arrive, we will offer $100 trade-in for the light bar bracket once you are done with it. This means that you can keep the light wired up and install it on your bull bar.
MADE IN AUSTRALIA
(Registered Design Number 202213815)
