Ford Ranger PX1 & PX2 (2011 - 06/2018) - Dobinsons IMS Monotube Lift Kit 3" Front & 2' Rear

Ford Ranger PX1 & PX2 (2011 - 06/2018) - Dobinsons IMS Monotube Lift Kit 3" Front & 2' Rear

Regular price $2,440.00 AUD
Regular price Sale price $2,440.00 AUD
Sale Sold out
Products are currently unavailable for purchase currently on our website, please call or message us regarding products and availability.

(PHONE: 9359 2555)

(LOCATION: Unit 3/115 Howe St, Osborne Park WA 6017)
View full details

Collapsible content

DETAILS

Provide details like specifications, materials, or measurements.

Add an image in your Collapsible content settings for more visual interest.

TIPS

Share expert tips on how to use this product or pair it with other items.

SHIPPING

List the details of your shipping policy.

Ford Ranger PX1 & PX2 (2011 - 06/2018) - Dobinsons IMS Monotube Lift Kit 3
Ford Ranger PX1 & PX2 (2011 - 06/2018) - Dobinsons IMS Monotube Lift Kit 3

Ford Ranger PX1 & PX2 (2011 - 06/2018) - Dobinsons IMS Monotube Lift Kit 3" Front & 2' Rear

$2,440.00
Products are currently unavailable for purchase currently on our website, please call or message us regarding products and availability.

(PHONE: 9359 2555)

(LOCATION: Unit 3/115 Howe St, Osborne Park WA 6017)
PRESS HERE TO ENQUIRE AVAILABILITY ON PRODUCT

WORLDWIDE SHIPPING

FREE RETURNING

SUPPORT 24/7

FORD RANGER PX1 & PX2 (2011 - 06/2018)

DOBINSONS IMS MONOTUBE LIFT KIT 3" FRONT & 2" REAR

Type:
Ranger
Model: PX / T6 MK1 & 2
Year: 08/2011 to Mid 06/2018

Detail:
S4x4 Chassis Mounted Front Bump Stop Models Only, Also Suits 4x2 Highrider

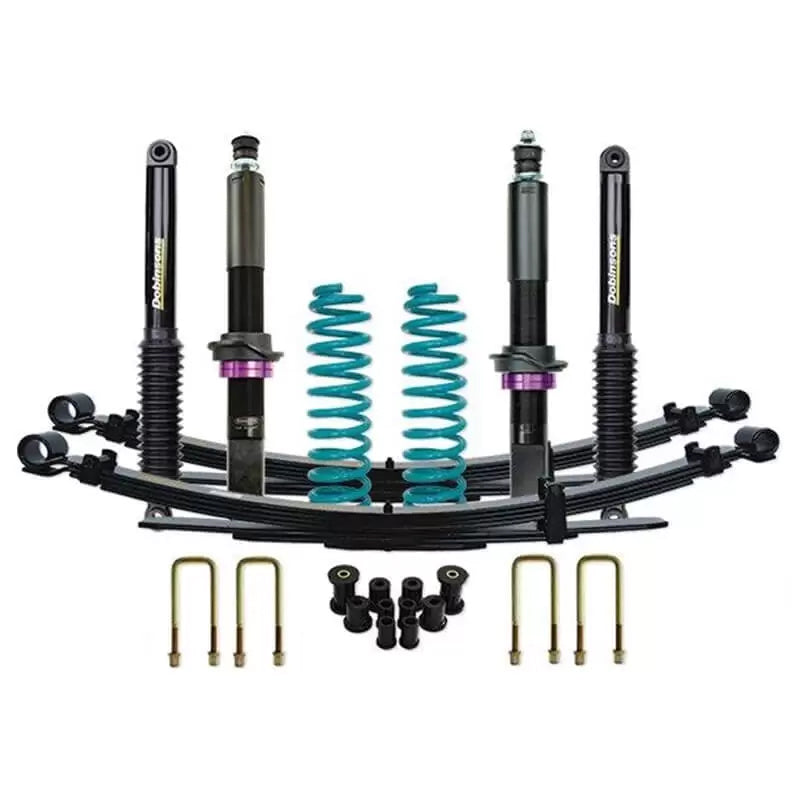

The kit contains:

•2x IMS19-50092 - Dobinsons IFP Monotube Shock Adjustable Spring Seat Height

•2x Dobinsons Front Coil Springs

•2x IMS19-50081T - Dobinsons IFP Monotube Shock

•2x Dobinsons Rear Coil Springs

•4x UB21-466 - U Bolts

•1x PB19-1104K - Polyurethane Leaf Spring Bush Kit

Recommended Upgrades:

•2x SK19-058 - Greasable Shackles & 2x SP59-060 - Greasable Shackle Pins

•1x WA19-526K - Tailshaft Centre Bearing Spacer Kit (Helps to Reduce Driveline Vibration in Lifted Vehicles)

Optional Upgrades:

•Coil and Strut Assembly with new strut tops - SC19-009 - Strut tops

•Airbag Suspension Helper Kit for Leaf Springs - Used for towing, so you can choose a more comfortable rear spring when you are not towing.

IMPORTANT:

WARNING - 75MM (3”) OR HIGHER LIFT

The suspension components listed on this page are for off-road use only.

•Refer to Local Laws before Fitting to Registered/Road Vehicles

•An Engineering Certificate may be required

•Handling Characteristics will Diminish on Lifts Above 50mm (2”)

•Visit Dobinsons warranty page for more info - https://dobinsons.com/warranty

DESCRIPTION:

Dobinsons IMS monotube shock absorbers are designed for next level performance over twin tube shocks in those hot, harsh, demanding conditions. By utilising the monotube design, Dobinsons IMS shock absorbers are able to resist fade far longer on corrugated roads, long or hard working 4WD trips, towing or racing conditions.

The larger 50 and 60mm high flow pistons reduce internal pressures, reduce the heat generated, transfer heat to the body for faster cooling and offer improved damping performance and vehicle control at higher shaft speeds on rough terrain and during big impacts. Threaded bodies on struts allow for fine tuning of height and offer further improvements in cooling. The micro polished, hard chromed and heat treat shock shaft, CNC aluminium high flow race inspired piston, and DOM seamless tubing body provides the ultimate in performance and off-road durability.

Composite piston wear bands, high quality Fuchs oil and a race style 3-stage sealing system offer the lowest levels of friction whilst maintaining durability and longevity without the need for frequent rebuilding or servicing. Dobinsons team of engineers spend hundreds of hours of testing and tuning the shim stacks and damping Characteristics in each IMS shock to ensure a balance of comfort, handling, vehicle control and off-road performance - Enjoy the ride

FEATURES:

•Zero shock fade in all terrains

•Direct, bolt-on replacement for easy fitment

•Corrosion resistant (EDP Surface Protection)
•Heavy duty single piece lower leg

•Enormous oil capacity

•Heavy Duty 3 Stage FKM HNBR Sealing System for the ultimate in offroad handling

•Race inspired Hi-Flow CNC 6061 Billet Alloy Piston for the ultimate in offroad handling

SPECIFICATIONS:

•50/60mm CNC Machined High Flow Billet Aluminium Race Piston

•Lightweight CNC Machined Low Friction Internal Floating Piston

•3mm Thick Heavy Duty DOM Seamless 56mm / 66mm O.D. Shock Body Precision Honed to +/- 0.04mm

•High Quality O.E.M Grade Natural Rubber Bushings

•T6 6061 Height Adjustable Spring Seat

•Single Piece Lower Leg

•Carbon-Fibre /PTFE/Disulphide composite wear band for the ultimate in low-friction, low-wear performance

•EDP Surface Protection

IMPORTANT NOTES FOR SETTING UP YOUR VEHICLE CORRECTLY

•When selecting Springs to suit your lift, please Select Springs only to suit Current "CONSTANT" Loads Front and Rear.

•Towing Loads are not included in your Constant Load Calculations, as they are not "Constant" Loads.

•Please do not put Occasional Loads into your "Constant" Load determinations.

•Selecting a load rating that is too heavy for your setup will result in Poor Flex Off-Road, Compromised Suspension Travel & Rough Ride, and will cause damage to your new shock absorbers and other components by pushing them outside of their intended range.

Please Note: All lift heights stated are estimated lift heights, due to the large number of variables in each different vehicles setup and accessories.

CUSTOMISE YOUR KIT BELOW:
